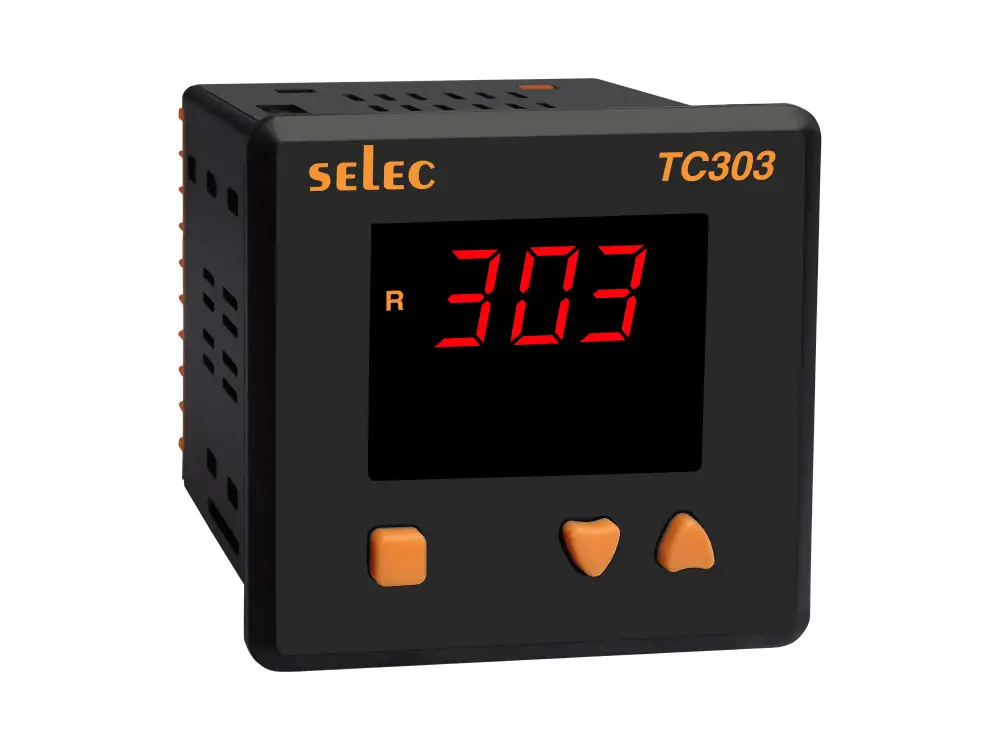

Part Number: SELEC TC 303 A
Category: Heaters
| Brand | SELEC |
| Model Number | SELEC TC 303 A |
| Made in | India |
| Lead Time | SAME DAY DISPATCH |
Lead Time : Same Day Dispatch
Weight : 0.00 kg
Package Dimensions :
| Display Type | 7 Segment LED Dual Display |
| Display Configuration | 4 + 4 Digits |
| Type of Input | Thermocouple (J,K,T,R,S) / RTD (PT100) |
| Resolution | 0.1/1° for TC / RTD (fixed 1° for R and S TC) |
| Accuracy | For TC (J, K, T) inputs: 0.25% of F.S. ± 1 ° For R & S inputs: 0.5% of F.S. ±2 (20min of warm up time) For RTD inputs: 0.1% of F.S ±1 |
| Control Output | RELAY |
| Auxiliary Output | RELAY |
| Control Mode | Auto Tune PID / ON-OFF |
| Supply Voltage | 90 to 270V AC/DC |
| Size | 48 x 48mm |
| Mounting Type | Panel Mount |
| Certification | CE |
